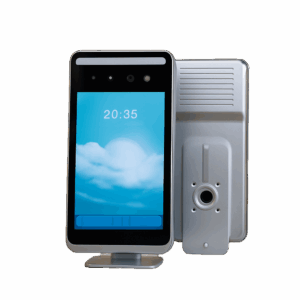

FOX-IRIS MODEL
I8i
The FOX-IRIS Model I8i is a highly advanced, 8-inch all-in-one iris recognition terminal designed for ultra-secure and contactless identity verification. Built for performance in diverse environments, it o ers lightning fast recognition, high storage capacity, and seamless integration with attendance and access control system

HIGH ACCURACY
False acceptance rate as low as 0.00001%

LIGHTNING-FAST RECOGNITION
Identification in under 1 second

WORKS ANYWHERE:
Indoor, outdoor, low light, and high-contrast environments

FLEXIBLE INSTALLATION
Freestanding or wall-mounted

SECURE STORAGE
Over 400,000 record capacity
DEVICE SPECIFICATION
- OPERATING SYSTEM: RK3399, Octa-core 2.0GHz, Android 7.1
- CONFIGURATION: 2GB RAM + 16GB Storage
- LCD SCREEN SIZE: 8 inches
- SCREEN RESOLUTION: 800 × 1280
- VIEWING ANGLE: R/L 178° full viewing angle
- BRIGHTNESS: 300 cd/m²
- TOUCHSCREEN: 10-point capacitive touch
- CAMERA: 5MP physical wide dynamic range
- RECOGNITION DISTANCE: 45-85 cm
- RECOGNITION COVERAGE: Height span of 13 cm
- RECOGNITION SPEED: <1 second
- Support AWB, AGC, BLC, make the image color better
- ENVIRONMENTAL ADAPTABILITY: Suitable for indoor, outdoor, nighttime, and high-contrast lighting conditions
For more details:
The FOX-IRIS Model I8i is a cutting-edge, 8-inch all-in-one iris recognition terminal designed for secure, contactless, and hygienic biometric verification. Powered by an RK3399 Octa-core processor with Android 7.1, it features a high-resolution 800 × 1280 capacitive touchscreen, a 5MP wide dynamic range camera, and advanced dual-eye iris recognition technology.
With support for up to 50,000 users and over 400,000 record storage, the I8i offers lightning-fast recognition (<1 second) and high accuracy (FAR: 0.00001%). It excels in diverse conditions—indoor, outdoor, night, and backlit environments—thanks to robust liveness detection and environmental adaptability.
The device supports multiple installation options (freestanding/wall-mounted), integration with turnstiles and access control systems, and deployment via standalone, LAN, or cloud platforms. Encased in CNC-crafted aluminum alloy with a tempered glass front, the I8i is IP64-rated for durability and features a modern black & silver design.
Ideal for high-security applications, the FOX-IRIS I8i is a reliable solution for identity verification, attendance tracking, and access control.
FOX-IRIS Model I8i – Specifications
System & Configuration
Operating System: Android 7.1
Processor: RK3399, Octa-core, 2.0GHz
RAM / Storage: 2GB RAM + 16GB Storage
Display
Screen Size: 8 inches
Resolution: 800 × 1280 pixels
Viewing Angle: 178° (Left/Right Full View)
Brightness: 300 cd/m²
Touchscreen: 10-point capacitive touch
Camera & Iris Recognition
Camera: 5MP wide dynamic range
Recognition Distance: 45–85 cm
Recognition Coverage: Height span of 13 cm
Recognition Speed: <1 second
False Acceptance Rate (FAR): 0.00001%
False Rejection Rate (FRR): 0.1%
Liveness Detection: Supported (anti-spoofing with photos/videos)
Iris Users: Up to 50,000 (dual-eye templates)
Templates: One per eye (expandable by configuration)
Matching Speed: <1 second
Storage & Audio
Record Capacity: Over 400,000 local records
Speakers: Dual 3W speakers (voice broadcast for comparison results)
Environmental Adaptability
Working Temperature: -30°C to 70°C
Humidity: 10% to 90%
Recognition Conditions: Indoor, semi-outdoor, nighttime, backlit environments
Physical Specifications
Dimensions: 245 mm × 140 mm × 38 mm
Material: Tempered glass front, CNC-crafted aluminum alloy body
Color: Black + Silver
Waterproof Rating: IP64
Installation: Freestanding / Wall-mounted
Connectivity & Interfaces
Interfaces:
2 × USB
1 × RJ45 (LAN)
1 × Relay Output
1 × DC Power Input
Power Requirements
Voltage: 12V
Current: 3A
Integration & Deployment
Access Control Integration: Supports turnstiles and door unlocking
Network Deployment: Standalone, LAN, or Cloud-based
